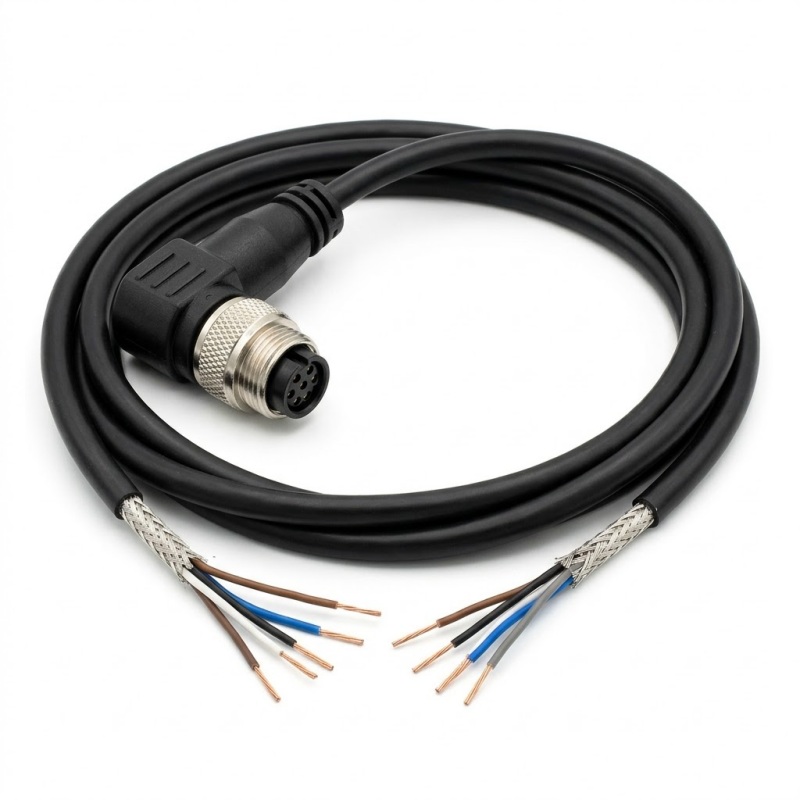

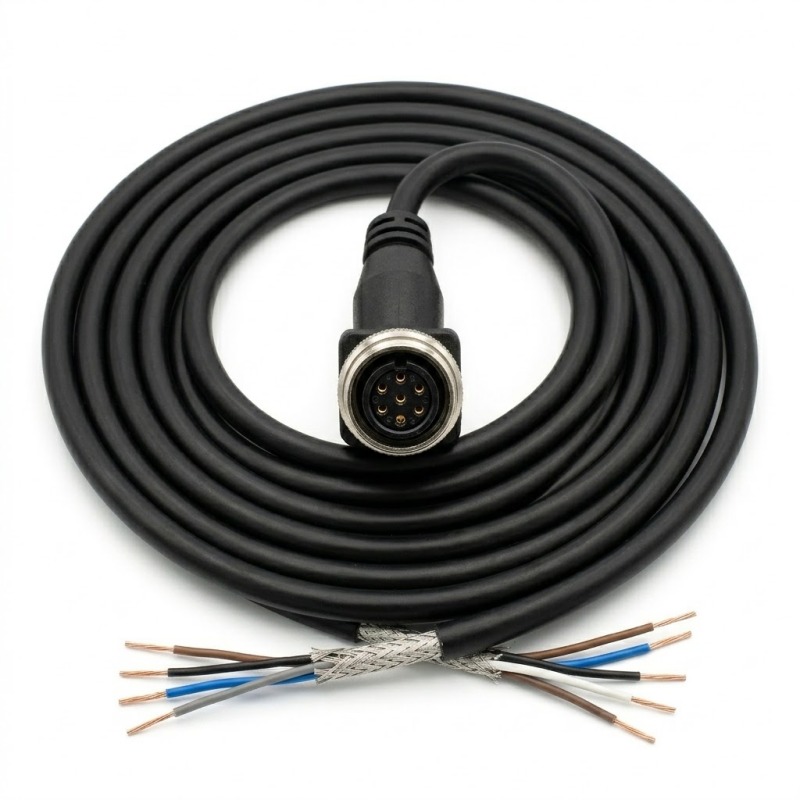

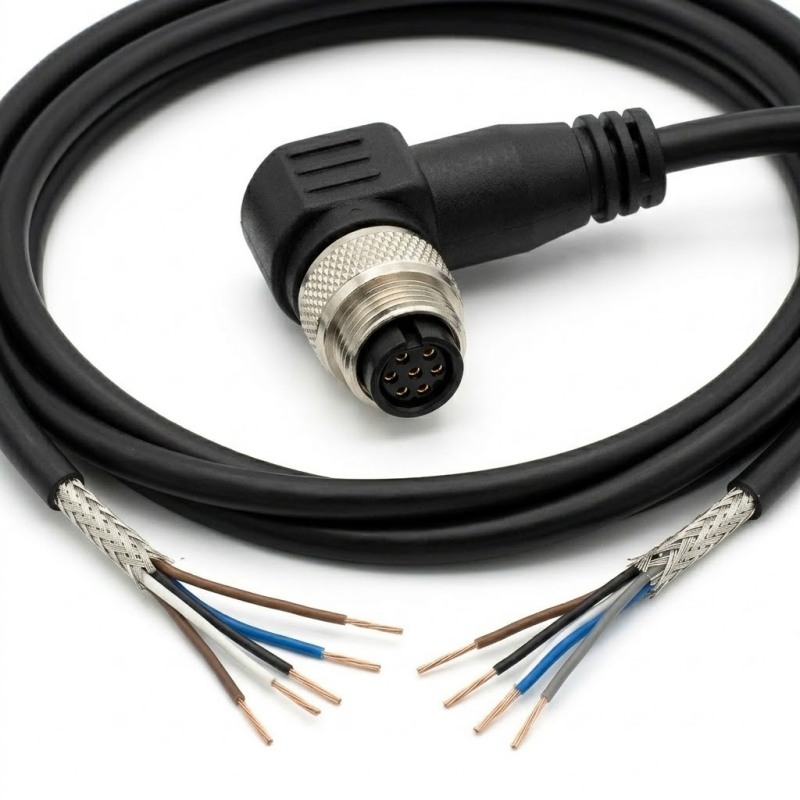

Custom M12 A-Code 90-Degree Overmolded Cables | Space-Saving Sensor Solutions by SINNHONG
In the 2026 landscape of Miniaturized IIoT and AI-driven Automation, standard connectivity often fails to meet space-constrained requirements. SINNHONG, a premier China & Vietnam Manufacturer, specializes in Custom M12 A-Coded 90-Degree Overmolded Cables. Our low-profile, right-angle design is engineered to fit into the tightest machine gaps, providing a ruggedized bridge for sensor-to-cloud data transmission.
Built to the rigorous IPC-A-620 Class 3 Standard, our sensor harnesses ensure zero-interference signal integrity in high-EMI environments. By utilizing our Vietnam-based OEM Electronics Manufacturing hub, we offer a strategic tariff-exempt sourcing path for North American and European Tier 1 OEMs, effectively bypassing Section 301 duties. Featuring UL Listed Wire and Custom Pinout Configurations, SINNHONG delivers landed-cost optimized solutions tailored to your specific industrial architecture.
Technical Specification Matrix: Custom High-Performance Sensor Links
| Feature | Technical Specification | Compliance & Standards |
| Connector Type | M12 A-Coded (3, 4, 5, 8, 12-Pin) | IEC 61076-2-101 / 010 |
| Molding Profile | Ultra-Compact 90° Low-Profile | Space-Saving Geometry |
| Ingress Protection | IP67 / IP68 / IP69K (Washdown) | DIN 40050-9 / NEMA 6P |
| Cable Jacket | PUR (Oil-Resistant) / WSOR / TPE | UL 20549 / Flame Retardant |
| Nut Material | Nickel-Plated Brass / Stainless Steel 316L | Anti-Corrosion / Food Grade |
| Signal Integrity | 360° Shielded / Twisted Pair | EMI/RFI Suppressed |
| Manufacturing Std | IPC-A-620 Class 3 / IATF 16949:2026 | Zero-Defect Quality |
| Sourcing Strategy | SINNHONG Vietnam (Duty-Free Hub) | China-Plus-One Strategy |
Tailored Engineering for Extreme Industrial Durability
Custom Pinout & Length Configuration: We provide full OEM Electronics Manufacturing flexibility, allowing for custom wire color codes, specialized pinout mappings, and exact cable lengths to eliminate "cable clutter" in compact machine builds.

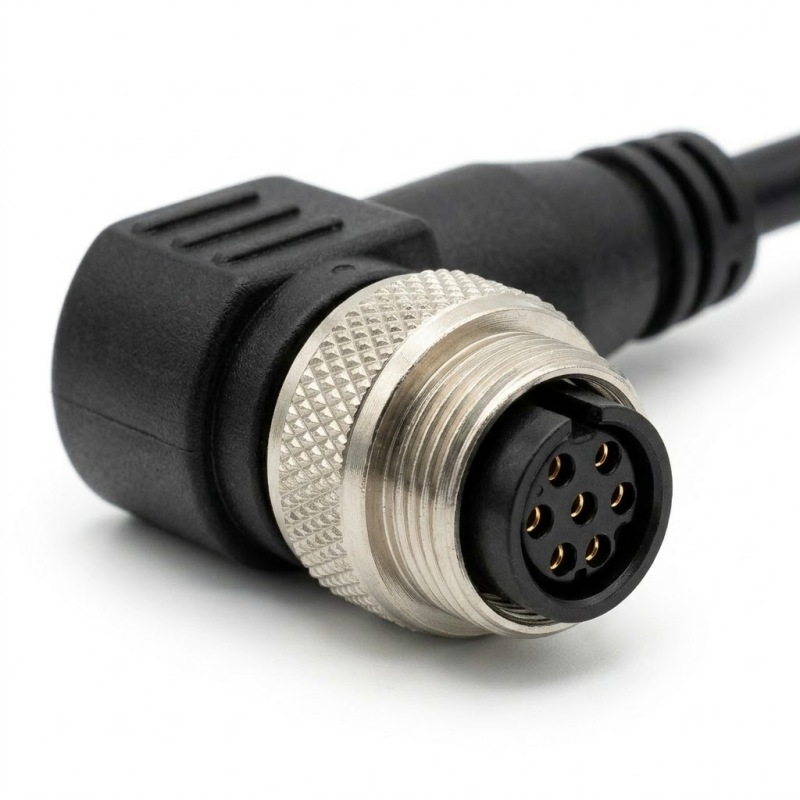

Low-Profile 90-Degree Geometry: Our proprietary molding tools create a significantly smaller bend radius than standard angled connectors, essential for Miniaturized IIoT devices and slim-profile actuators.
Extreme Environment Resilience: Available with Weld-Slag Resistant (WSOR) and Oil-Resistant PUR jackets, our cables are tested for 10 million+ bending cycles, making them ideal for multi-axis robotic arms.
Visual Status Integration: Optional Integrated LED Indicators (PNP/NPN) within the overmold allow for rapid on-site troubleshooting and sensor status monitoring in dark or complex factory environments.
Precision 360° Shielding: Utilizing high-coverage braided shielding and UL Listed Wire, we maintain signal purity for high-speed Machine Vision and precision encoder feedback.
Marine & Food Grade Options: Choose Stainless Steel 316L nuts for high-salinity marine environments or pharmaceutical washdown zones requiring aggressive chemical resistance.
Miniaturized IIoT & Smart Sensors: High-density sensor deployment in compact PLC cabinets and smart city infrastructure.
AI-Driven Machine Vision: Shielded, right-angle data links for 8K inspection cameras in high-speed assembly lines.
Collaborative Robotics (Cobots): High-flex, torsion-resistant 90-degree harnesses for internal and external articulated joint wiring.
Autonomous Mobile Robots (AGV/AMR): Ruggedized power and signal links for battery management systems and navigation LIDARs.
Sustainable Energy (Solar/Wind): UV-resistant and weather-proof custom M12 links for solar tracker actuators and wind turbine pitch sensors.
Pharmaceutical & Food Packaging: IP69K washdown-rated cables for automated filling and sorting machines requiring frequent sanitation.
The customer provides product customization requirements and relevant information.
Our professional technical personnel analyze and evaluate the product requirements, and confirm product details with the customer.
We provide customers with quotations and production plans.
The customer confirms the quotation and production plan, and signs the contract.
We start production and maintain close communication with the customer during the production process.
We complete production and perform strict quality control testing.
We deliver the customized products to the customer and provide after-sales service.
