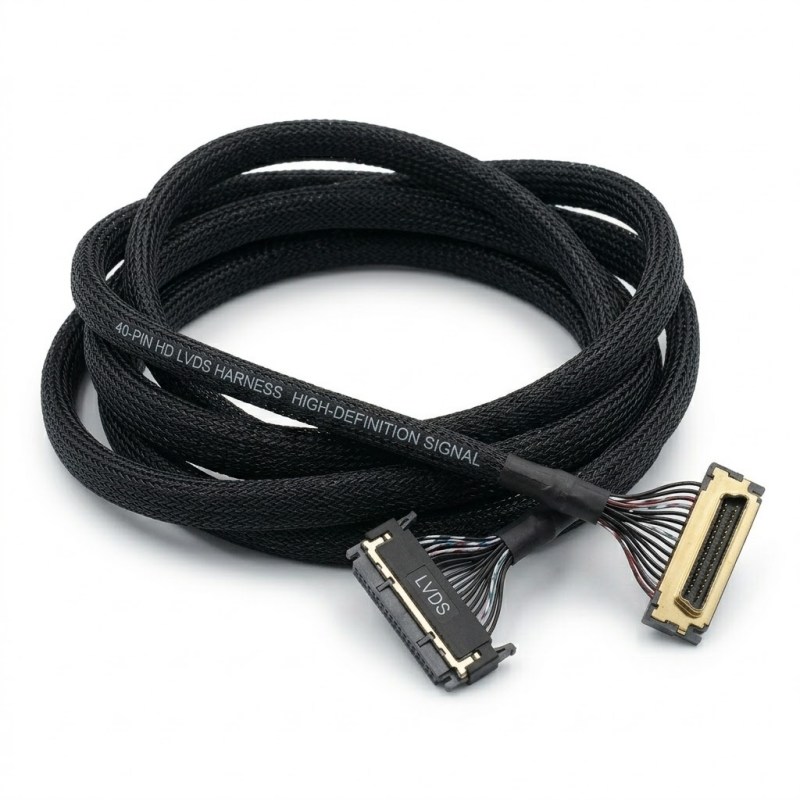

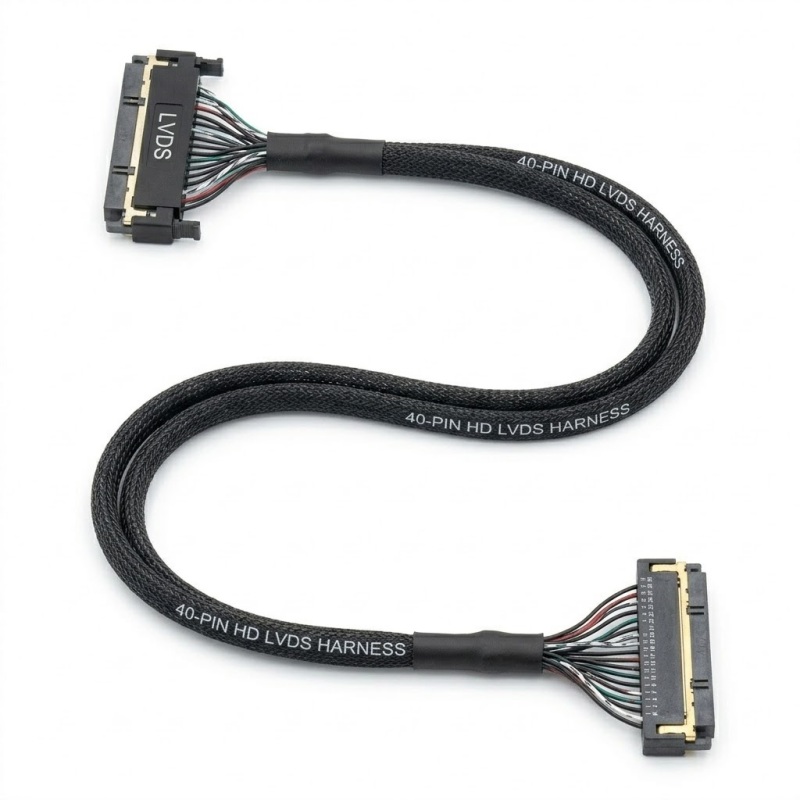

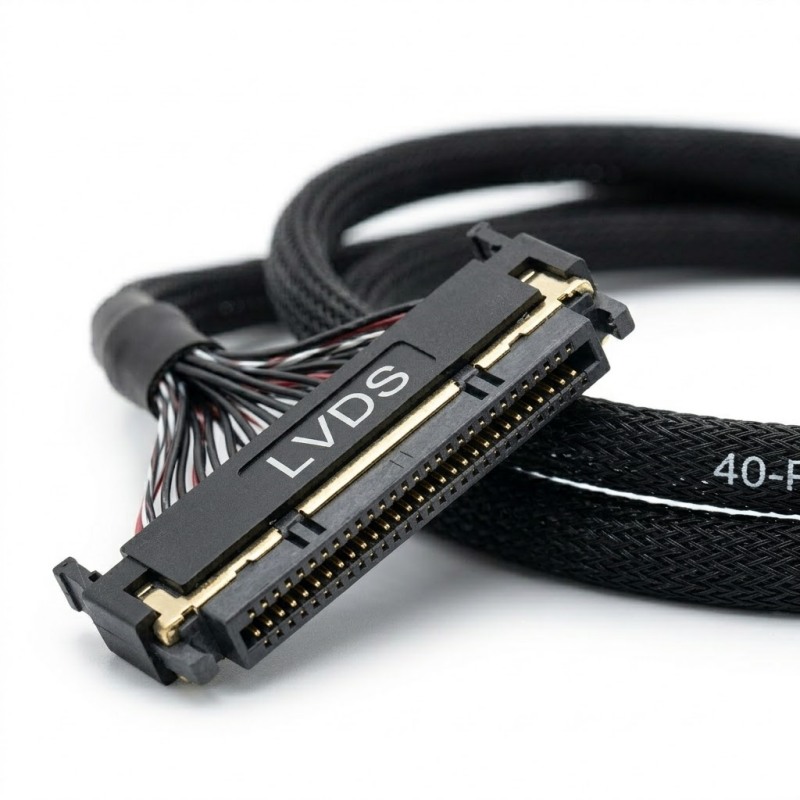

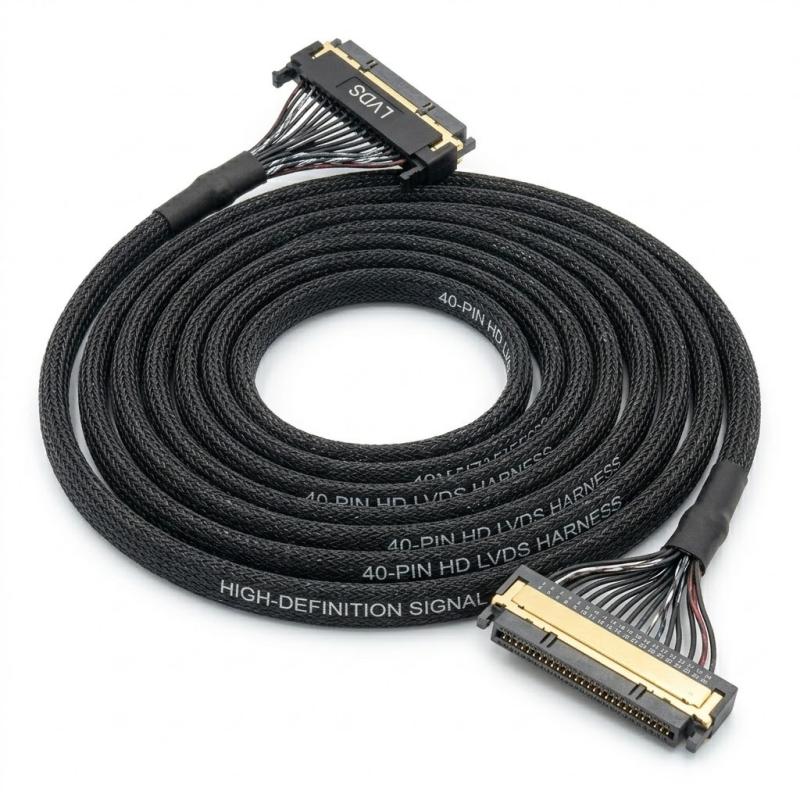

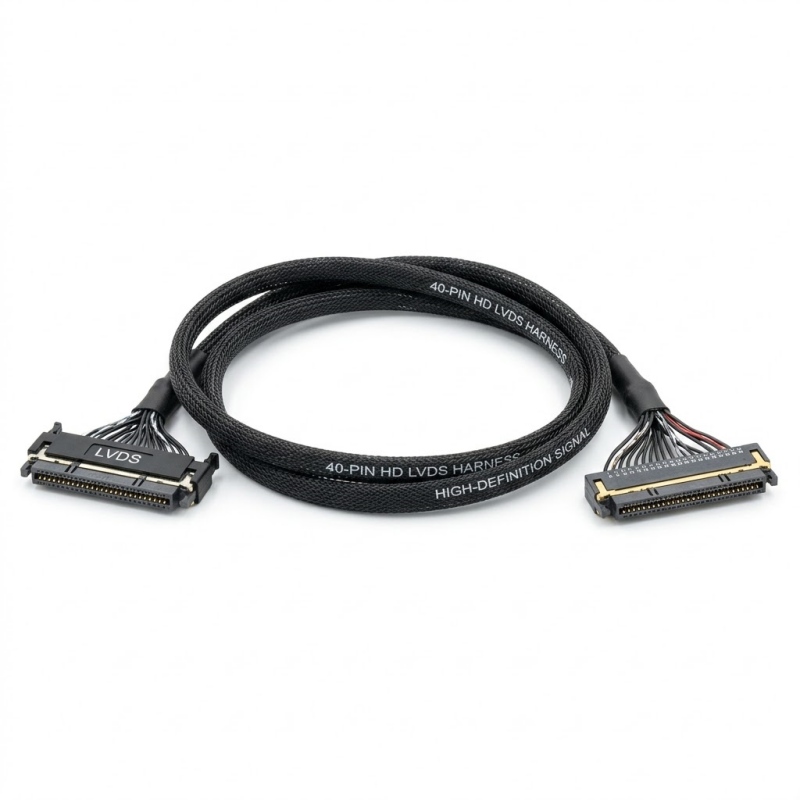

40-Pin/50-Pin High-Density LVDS Harnesses | eDP-Compatible Interface Solutions by SINNHONG
As industrial displays migrate toward 8K Edge AI and Smart HMI panels, the demand for signal integrity and protocol flexibility has reached its peak. SINNHONG, a premier China & Vietnam Manufacturer, provides an advanced lineup of LVDS Wire Harnesses designed for the "Digital Twin" and "Experience Economy" of 2026.
Our high-bandwidth assemblies are engineered to the IPC-A-620 Class 3 Standard, ensuring zero-defect data transmission in mission-critical medical imaging and aerospace cockpits. By utilizing our Vietnam-based OEM Electronics Manufacturing facility, North American and European partners can secure a Section 301/Section 122 tariff-exempt supply chain, significantly reducing the Total Cost of Ownership (TCO). Featuring UL Listed Wire and TDR-verified 100-Ohm impedance control, SINNHONG is your strategic partner for next-generation visual interconnects.
Technical Specification Matrix: High-Density & Protocol-Adaptive Links
| Feature | Technical Specification | Compliance & Standards |
| Pin Configuration | 30-Pin / 40-Pin / 50-Pin High-Density | Industry Standard Pitch |
| Protocol Support | Dual-Channel LVDS / eDP / MIPI DSI | Multi-Protocol Compatible |
| Data Throughput | Up to 10-Bit Color @ 144Hz Refresh | UHD / 8K Optimized |
| Signal Integrity | 100 Ω ± 3% (TDR Verified) | Low-Skew Differential Pairs |
| Connector Pitch | 0.4mm / 0.5mm / 1.0mm Micro-Pitch | I-PEX / JAE / Hirose Compatible |
| Insulation Media | High-Temp Teflon / LSZH / Shielded FFC | UL 94-V0 Flame Retardant |
| Manufacturing Std | IPC-A-620 Class 3 / AS9100 Certified | Precision Aerospace & Medical |
| Supply Origin | SINNHONG Vietnam (Duty-Free Hub) | China-Plus-One Strategy |
Precision Micro-Interconnects for 2026 Smart Infrastructure
eDP to LVDS Protocol Conversion: We specialize in eDP to LVDS interface cables, enabling engineers to bridge the gap between modern AI edge computing modules and legacy high-definition LCD panels.
TDR-Verified 100-Ohm Impedance: Every high-speed data link is TDR-verified to maintain strict 100-Ohm differential impedance, eliminating bit-errors and signal reflections in 10-bit color depth systems.
Ultra-Thin Micro-Coaxial Assemblies: Our 0.4mm pitch Micro-Coaxial LVDS harnesses are designed for "Zero-Bezel" and foldable displays, offering the extreme flexibility required for slim-profile HMI enclosures.
Teflon-Insulated High-Temp Protection: For aerospace and defense cockpit displays, we offer Teflon-insulated LVDS wiring, providing superior thermal resistance and EMI protection in high-interference environments.
Shielded Umbilical Solutions: Our Shielded LVDS Umbilical Harnesses are optimized for medical imaging carts, featuring IP67-rated waterproof overmolding and 360° EMI suppression for crystal-clear diagnostic visuals.
Low-Skew Differential Pairs: Utilizing premium UL Listed Wire, we achieve "Picosecond-Level" skew control, essential for high-refresh-rate 144Hz simulators and real-time AI behavioral analytics.
Edge AI & Embedded Vision: LVDS interface cables for AI-integrated camera modules and smart retail signage that adapt content in real-time to viewer behavior.
Telemedicine & Surgical Consoles: High-resolution, low-latency display wiring for 8K medical monitors used in remote robotic surgery and advanced diagnostics.
Aerospace & Defense HUDs: AS9100-compliant LVDS harnesses for Head-Up Displays (HUD) in eVTOL aircraft and ruggedized military glass cockpits.
Smart Factory HMI Panels: High-density 50-pin LVDS assemblies for Industrial 5.0 touchscreens that integrate real-time predictive maintenance data.
Autonomous Vehicle Dashboards: Specialized MIPI to LVDS links for digital twin dashboards and 3D immersive infotainment systems in self-driving fleets.
Outdoor Digital Kiosks: Weather-proof, IP67-rated LVDS display harnesses for public transportation hubs and smart city interactive signage.
The customer provides product customization requirements and relevant information.
Our professional technical personnel analyze and evaluate the product requirements, and confirm product details with the customer.
We provide customers with quotations and production plans.
The customer confirms the quotation and production plan, and signs the contract.
We start production and maintain close communication with the customer during the production process.

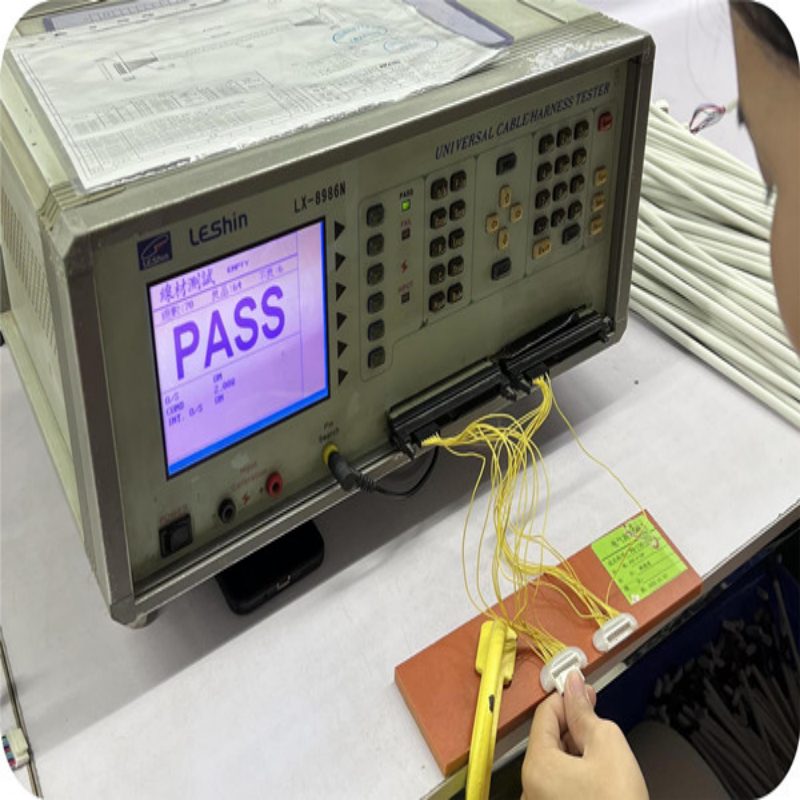

We complete production and perform strict quality control testing.
We deliver the customized products to the customer and provide after-sales service.
